Temperature Transducer with Bacnet and Modbus RS485
$19.00 – $27.00
Duct mount temperature only transducer, Bacnet/Modbus over RS485, 0-10v 4-20ma output signal
Product Highlights:
-High precision sensor accurate to 2% humidity over the entire temperature range.
-Duct mount style is suitable for typical HVAC and agricultural applications
-Field selectable span for the temperature range
-100% field changeable Temp/Hum module, no tools or calibration needed.
-Jumper select the output signal: 4~20mA or 0-10V
-BACnet MS/TP and Modbus RTU protocols over RS485.
-Enthalpy and dew point are available over the RS485 link
Available Options:
Duct temperature transmitter is applicable to all kinds of building automation, environment monitoring, HVAC systems. Product appearance is simple, direct connection terminals, convenient installation.Products use high performance embedded microprocessor, and high-precision sensors to meet all kinds of high precision,high stability of the temperature measurement requirements , and variety needs of different environments.Duct temperature sensor / transmitter has current,voltage, 485 output signal to select, using 485 serial port out put and Modbus communication protocol. It is commonly used in HVAC, electrical plant,environment monitoring,dynamic environment monitoring, agricultural environmental monitoring, meteorological environmental monitoring,environmental monitoring of biological pharmacy, airport,subway stations, hotel,museum,stadium, etc.
Dimension
Wiring Diagram

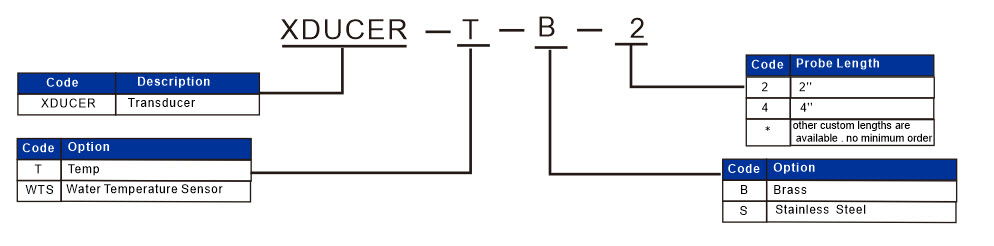

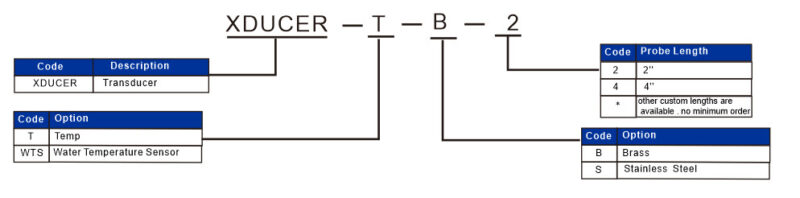

Part Num Scheme
Works with:Thermowell https://bravocontrols.com/shop/brass-stainless-steel-thermowells/
| Weight | 0.1 kg |
|---|---|
| Module type | |
| Probe Length |
