Three Phase Multi-function Smart Meter
$45.00 - $138.00

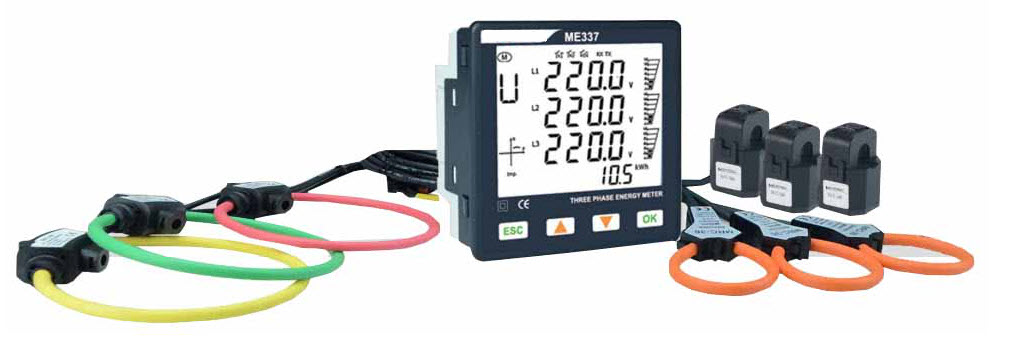

The ME337 Three-phase power meter with Rogowski coils makes for easy retrofit installation on both three and four wire systems. Supports Modbus RTU protocol over RS485 for integeration into building management systems.
Product Highlights:
- Monitors current, voltage, phase angle and many other parameters
- High precision measurement
- Modbus RTU communication over RS485
- Measuring range：0~600VAC Phase voltage
Available Options:
ME337 panel type three-phase multi-function power meter, external open Rogowski coil or voltage,type CT, realize the test without removing the wire, simplify the test steps, and save construction costs.ME337 supports three-phase four-wire, three-phase three-wire, one-phase three-wire and single-phase,systems; It can measure multiple electrical parameters such as voltage, current, power factor,harmonics, power, and energy of A, B and C phases.ME337 is equipped with RS485 communication interface, through the standard Modbus-RTU,protocol, can be compatible with various configuration systems, the front-end collected electrical,parameters real-time transmission to the system data center.
Wiring Terminals:
Wiring Diagram:
Meter support wiring type, three-phase four-wire 4CT (3P4W_4CT), three-phase four-wire 3CT(3P4W_3CT), three-phase three-wire 3CT (3P3W_3CT), three-phase three-wire 2CT (3P3W_2CT),one-phase three-wire (1P3W), one-phase two-wire (1P2W)
Three-phase four-wire 3CT
Three-phase three-wire 3CT

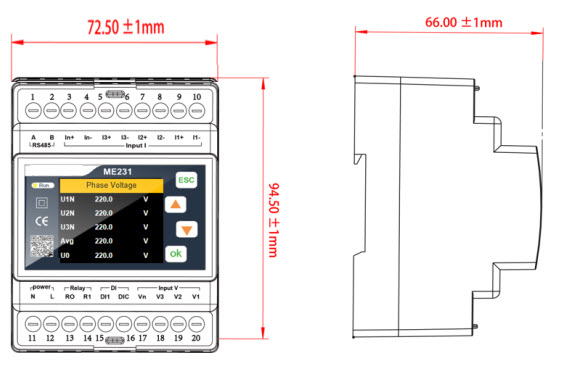

Dimensions:
| Weight | 0.7 kg |
|---|---|
| Primary current | 100A, 200A, 50A |
| Power Meter Type | ME231N2, ME337ND2, ME337ND3, ME337NR2 |
| Rogowski Coils | MRC-36, NRC-100, NRC-80 |
