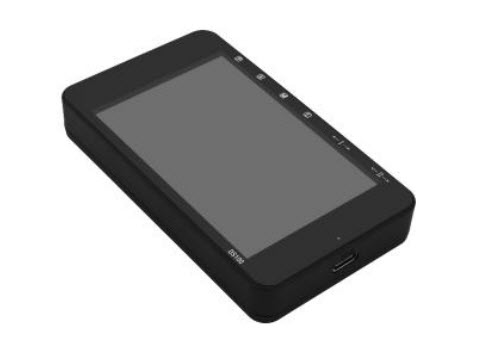

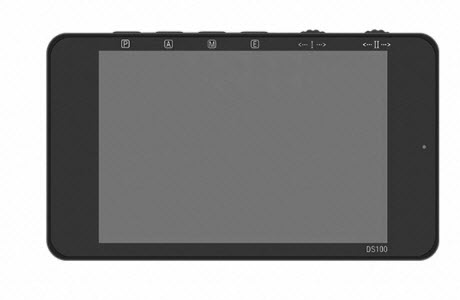

Digital Storage Oscilloscope
$234.00
Digital Storage Oscilloscope, 4 channels, 2 analog channels, 2 digital channels
Product Highlights:
- RS485 Diagnostic LEDs

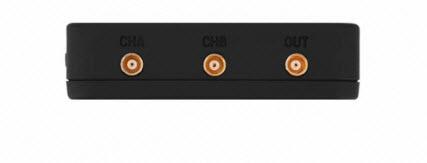

- 2 analog channels: (CH_A, CH_B), 2 digital channels (CH_C, CH_D)
- Sampling rate of any analog channel can reach 72 MS/s
- Record length of any channel can reach 4096 bits

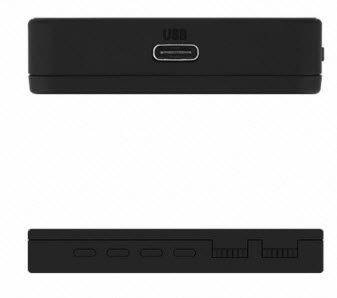

The CPU inside is based on ARM Cortex M3, adopting FPGA to manage the control & data buffering of ADC. A built-in 2MB USB disk enables users to store waveforms & upgrade firmware. It also provides 4 application areas, convenient for users to load & upgrade at most 4 kinds of application firmware.
Fuction Draphic:
Use Digital Storage Oscilloscope to test RS485 signal, following the figure:
| Weight | 1.00 kg |
|---|
