Damper Motor
$30.00 - $76.30
The Actuator is intended for ON-OFF and floating point controls in HVAC systems. It can easily mount on a 1/2″ round or square shaft with solid screw sets. Angle of rotation is mechanically limited to 90 degree. When the actuator reaches its maximum position, the device will automatically stop. An override lever is provided on the side to manually disengage the gear. Two mechanical stops are provided for extra adjustments.
Product Highlights:
- Simple Direct Mounting
- Stall-Proof Synchronous AC Motor
- Adjustable Angle of Rotation with Mech. Stops
- Manual override lever
- Consistent running time
- Visual Position Indicator
Available Options:
Damper Motor
The magnetic clutch allows the device to be operated in the stalled condition indefinitely, no need to interlock the motor at the end of travel. Running time is independent of the load. Two optional end switches provide status points or interlocks for fans & other devices.
Dimension:

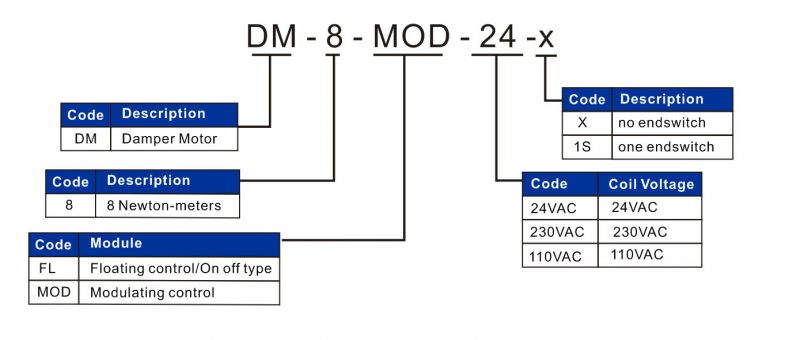

Part Number Scheme:
| Weight | 1.60 kg |
|---|---|
| Coil voltage | 110VAC, 230VAC, 24VAC, 24VAC/DC |
| Motor type | Modulating, On-OFF (Floating) |
| Endswitch | No endswitch, One endswitch |
