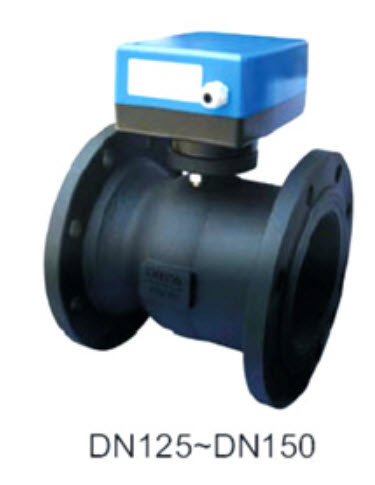

Electromagnetic flowmeter
$405.00 - $592.00
Product Highlights:
No moving parts, nothing to wear out.
• Minimal straight pipe requirements,upstream ≥10DN, downstream ≥5DN. m
• Suitable for all common fluids including boiler and chilled water systems.
• Unaffected by temperature,viscosity,pressure and density
• All parts inside & out are well protected from corrosion.
• Reversible flow readings.
• High definition LCD display with backlight, easy keypad setup.
• All parameters saved to EEPROM for backup during power outage.
• Wide working volts range
• Self diagnostics
Available Options:
The EFM Series is the most economical flanged electromagnetic flowmeter on the market. It is used in 3 to 12” pipe in HVAC, municipal or industrial water, wastewater, pump stations and packaged plant applications.
The EFM has no moving parts and the electrodes are designed to discourage fouling. This magmeter requires no maintenance in applications where debris would impede mechanical meters. There are no moving parts so there’s nothing to ever wear out. Minimal straight pipe requirements allow the EFM Series meters to be used where there’s little space available. EFM Series meters come rated at IP65 for use in typical chiller and boiler room applications, IP68 is available on request. Rate and total indication are standard. All setup is done with our free & open source graphical T3000 software.
Wiring Diagram
| Weight | N/A |
|---|---|
| Pipe Size | DN100, DN12, DN125, DN150, DN18, DN20, DN200, DN25, DN32, DN40, DN50, DN65, DN80 |
